导热硅胶片(1.5W)

导热硅胶片(1.5W)

LBD-GPP150系列熱傳導界面材料是填充發熱器件和散熱片或金屬底座之間的空氣間隙,它們的柔性、彈性特征使其能夠用於覆蓋非常不平整的表面。熱量從分離器件或整個PCB傳導到金屬外殼或擴散板上,從而能提高發熱電子組件的效率和使用壽命。

服务热线:+86-0755-29625680
  • LBD-GPP150 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.



    LBD-GPP150系列熱傳導界面材料是填充發熱器件和散熱片或金屬底座之間的空氣間隙,它們的柔性、彈性特征使其能夠用於覆蓋非常不平整的表面。熱量從分離器件或整個PCB傳導到金屬外殼或擴散板上,從而能提高發熱電子組件的效率和使用壽命。

  • Good thermal conductivity (1-15W/M.K), low thermal resistance 良好導熱率(1-15W/M.K),低熱阻

    Single-sided composite structure 單面複合結構

    Super soft, good surface compatibility 超柔軟,表面兼容性很好

    Good resilience, high reliability for long-term use 回彈性好,長期使用可靠性高

    A variety of thickness options, a wide range of applications 多種厚度選擇,應用范圍廣

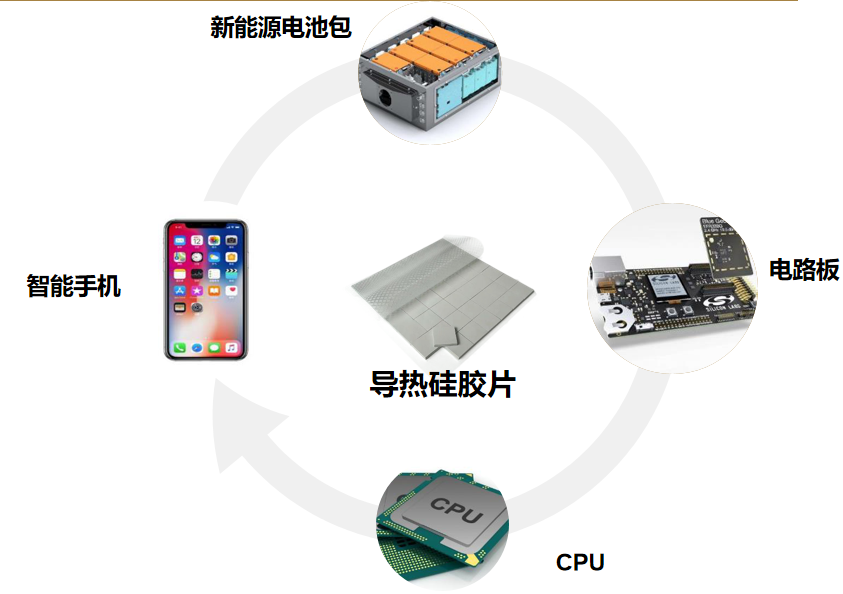

  • ● Power Supplies 電源模塊

    ● Automotive control services 汽車控制服務

    ● Military Electronics 軍用電子

    ● LED Lighting, LCD-TV LED照明設備,平面顯示器

    ● Telecom services, Wireless instruments 電信服務,無線儀器

    ● Computer services: CPU, Heat sink, Memory modules 計算機服務:CPU,散熱器,記憶存儲模塊

  • Standard size 標準尺寸: 200mm×400mm 、300mm×400mm

    ● Custom Die-cut shapes 不同形狀冲型裁切

    ● 0.3~10mm thickness optional  0.3~10mm厚度可選

    ● With or without  adhesive 可依需求背膠

  • Property 特性 LBD-GPP150 Unit Tolerance Test Method
    Composition 主要成份 Filled silicone elastomer 填充硅胶
    Color 顏色 Multicolor(多色) Visual
    Thermal Conductive 導熱率 1.5 W/m.K ±10% ASTM D5470
    Thickness 厚度範圍 10~400(1mil=0.0254mm) mil ±10% ASTM D374
    0.0254~10 mm 毫米
    Hardness 硬度 20~60 Shore 00 ASTM D2240
    Density 密度 1.76 g/cm³ ASTM D792
    Temperature Range 操作溫度 -40~+200
    Breakdown Voltage 耐電壓值 >3000(0.25mm~0.5mm) V ASTM D149
    >5000(>0.5mm)
    Flame Rating 阻燃等級 UL 94 V-0 UL 94
    Dielectric Constant 電介常數 4.9 MHz ASTM D150
    Standard Sheet Size 標準片材尺寸 200*400 / 300*400 mm
    Volume Resistivity 體積阻抗 1013 Ω.cm ASTM D257






    《注意事項》:
    ● 所記錄的數據僅為測定值的1例,並非為保證值;
    ● 在使用前,務必由貴公司進行事先試驗,有關於對於使用目的的適合性及安全性。均由貴公司承擔責任,故請予確認。
  • 例如:LBD- GPP15030-C

    說明:

    ● LBD代表:萊必德品牌

    ● GPP150代表:導熱係數1.5W/m.k

    ● T30代表:厚度0.3mm,可生產厚度範圍为0.3~10mm

    ●C代表:添加石墨烯

  •
