导热硅脂

導熱矽脂俗稱散熱膏，導熱矽脂以有機矽酮為主要原料，添加耐熱、導熱性能優異的材料，制成的導熱型有機矽脂狀複合物，用於功率放大器、晶體管、電子管、CPU等電子元器件的導熱及散熱，從而保證電子儀器、儀表等的電氣性能的穩定。

服务热线：+86-0755-29625680

联系我们

详细介绍
特性
产品应用端
产品配置
材料特性
材料编码原则

Thermally conductive silicone grease is commonly known as thermal grease. The thermally conductive silicone grease is made of silicone as the main raw material, added with materials with excellent heat resistance and thermal conductivity, to make a thermally conductive silicone grease-like compound, which is used in power amplifiers, transistors, electronic tubes, The heat conduction and heat dissipation of electronic components such as CPU, so as to ensure the stability of the electrical performance of electronic instruments and meters.

導熱矽脂俗稱散熱膏，導熱矽脂以有機矽酮為主要原料，添加耐熱、導熱性能優異的材料，制成的導熱型有機矽脂狀複合物，用於功率放大器、晶體管、電子管、CPU等電子元器件的導熱及散熱，從而保證電子儀器、儀表等的電氣性能的穩定。

Good thermal conductivity (1-5W/M.K), low thermal resistance 良好導熱率(1-5W/M.K)，低熱阻

Good thixotropy, easy to operate 觸變性好，易操作

Low sedimentation, excellent chemical and mechanical stability 低沉降，優異的化學及機械穩定性

Good extrusion resistance, long-term reliability 抗擠壓性好，長期使用可靠性

Suitable for screen printing and other processes 適用於絲網印刷等工藝

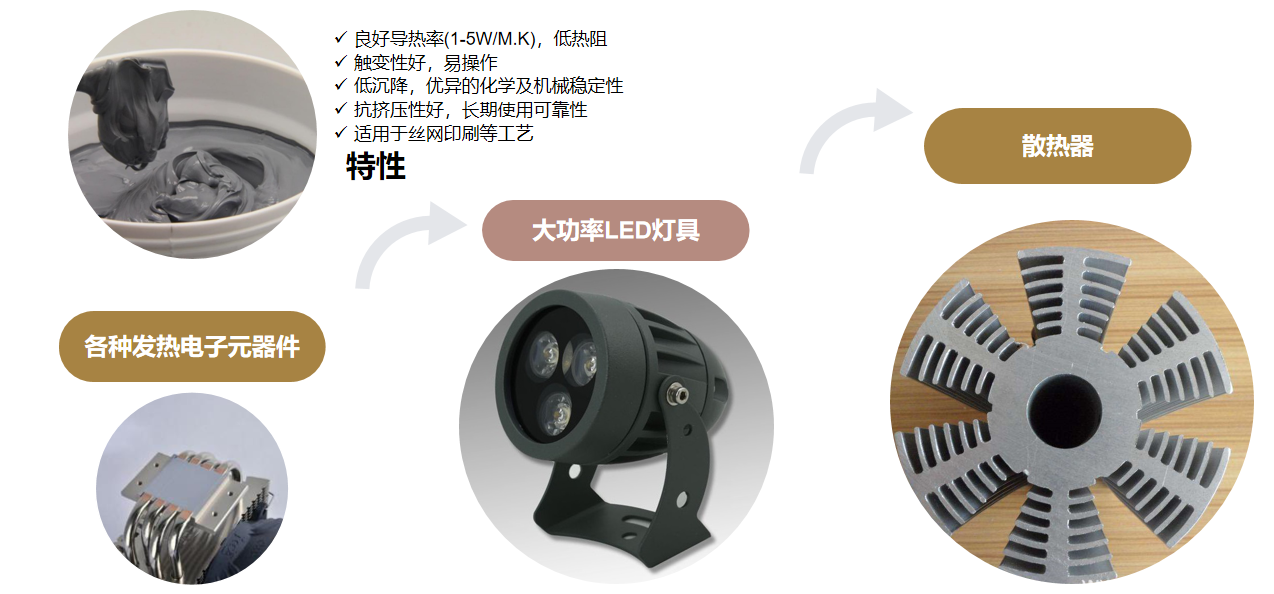

Heating elements (power tubes, thyristors, electric heating piles, etc.) and heat dissipation facilities (heat sinks, heat sinks, shells, etc.) in electrical equipment, microwave communications, microwave transmission equipment, microwave special power supplies, stabilized power supplies, etc. Microwave devices, transistors, CPU assembly, thermistors, temperature sensors, automotive electronic parts, automotive refrigerators, power modules, printer heads, etc.

電器設備中的發熱體 (功率管、可控矽、電熱堆等)與散熱設施(散熱片、散熱條、殼體等)、微波通訊、微波傳輸設備、微波專用電源、穩壓電源等各種微波器件、晶體管、CPU組裝、熱敏電阻、溫度傳感器、汽車電子零部件、汽車冰箱、電源模塊、打印機頭等

Can be customized according to customer needs. 可按客户需求定制。

Property	LBD-GPZ				Unit	Test Method
Model 型號	150	200	300	500	—	—
Color 顏色	White（白色）	Grey（灰色）	Grey（灰色）	Grey（灰色）	—	Visual
Specific Gravity 比重	2.03	2.35	2.52	2.7	g/cm³	ASTM D792
Volatile Content 揮髮量	0.57	0.52	0.43	0.35	2000℃,24Hrs	ASTM E595
Therml Conductivity 導熱係數	1.5	2.0	3.0	5.0	W/m-K	ASTM D5470
Thermal Resistance 熱阻	0.061	0.052	0.04	0.035	℃-in²/W	ASTM D5470
Breakdown Voltage 耐壓電值	520	450	390	310	V/mil	ASTM D149
Temperature Range 耐溫範圍	-40~150	-40~150	-40~150	-40~150	℃	EN344
Volume Resistivity 體積電阻率	10¹³	10⁸	10⁸	10⁸	Ω.cm	ASTM D257
Dielectric Constant 介電常數	4.1	4.2	4.5	4.7	@1MHZ	ASTM D150

《注意事項》：
● 所記錄的數據僅為測定值的1例，並非為保證值；
● 在使用前，務必由貴公司進行事先試驗，有關於對於使用目的的適合性及安全性。均由貴公司承擔責任，故請予確認。
